TRUSCO High Power Coil Hose for High Pressure 2.5MPa 2.0m HPC-3K 1 pc

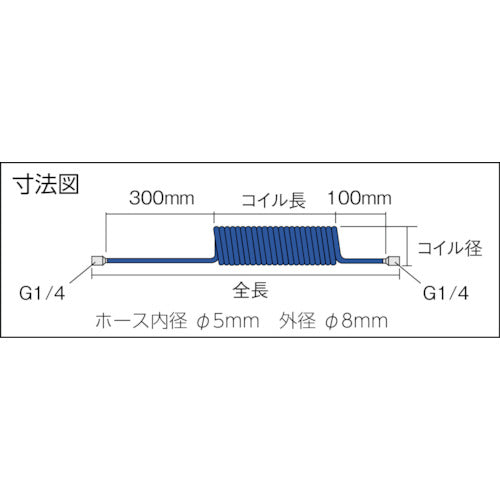

Catalog number: HPC-3K Features: ● Excellent pressure resistance due to the braided coil hose. ● The straight section is long (30 cm) for easy hand operation. ● Excellent elastic recovery. Specifications: ● Coil diameter (mm): 40 ● Color: Dark purple ● Hose inner diameter x outer diameter (mm): 5 x 8 ● Usage range (m): 2.0 ● Total length (mm): 640 ● Coil length (mm): 240 ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Fluid used: Air ● Dimensions (mm) B: 300 ● Fluid temperature: 0 to 60 °C ● Operating pressure: 2.5 MPa ● Connection joint: G1/4 female thread on both ends Material / Finish: ● Polyurethane Caution: ● Not compatible with high pressure plugs and sockets.
