トラスコ中山(株)

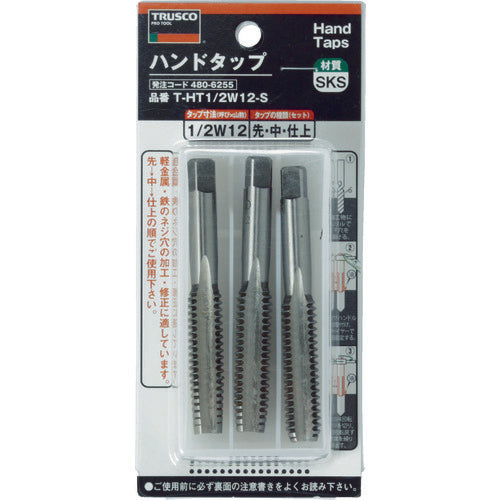

TRUSCO Hand Tap for Whitworth Threads, SKS 1/2W12 Set T-HT1/2W12-S 1 S
TRUSCO Hand Tap for Whitworth Threads, SKS 1/2W12 Set T-HT1/2W12-S 1 S
Regular price
¥5,014
Regular price
Sale price
¥5,014
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: T-HT1/2W12-S Features: ●Used for making and cleaning screw holes. ●For correcting and making screw threads. ●Tungsten hand set tap. Applications: ●Workpiece: Iron, light metals. Specifications: ●Tip: Tip, middle, finish ●Precision: JIS Class 3 ●Nominal dimensions: W1/2 ●Pitch (mm): 12 ●Thread length (mm): 42 ●Total length (mm): 85 ●Shank diameter (mm): 9 ●Shank square section (mm): 7 ●Pilot hole diameter (mm): 10.7 ●Number of threads: 12 ●Machined thread: Whitworth thread ●Surface treatment: Non-coated ●Set contents: Tip, middle, top Material/Finish: ●Low alloy steel (SKS) Caution: ●Cannot be used with stainless steel.
