TRUSCO Hand Tap for Whitworth Threads, SKS 5/16W18 Tip T-HT5/16W18-1 1 Piece

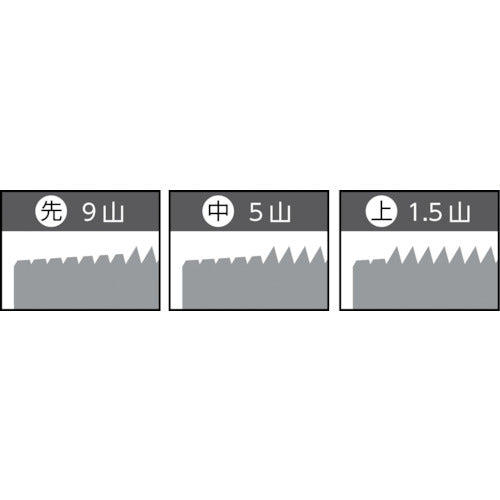

Catalog number: T-HT5/16W18-1 Features: ●Used for making and cleaning screw holes. ●For repairing and making screw threads. Applications: ●Workpiece: Iron, light metals. Specifications: ●Tip: Tip ●Accuracy: JIS Class 3 ●Accuracy notation: JIS Class 3 ●Nominal dimensions: W5/16 ●Thread length (mm): 30 ●Total length (mm): 70 ●Shank diameter (mm): 6.1 ●Shank square section (mm): 5 ●Pilot hole diameter (mm): 6.6 ●Number of threads: 18 ●Machined thread: Whitworth thread ●Surface treatment: Non-coated Material/Finish: ●Low alloy steel (SKS) Caution: ●Cannot be used with stainless steel.
