TRUSCO Hand Tap for Metric Threads, SKS M10X1.25 Tip T-HT10X1.25-1 1 Piece

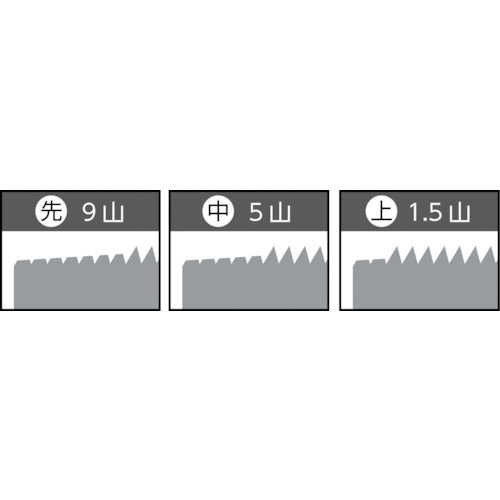

Catalog number: T-HT10X1.25-1 Features: ●Used for making and cleaning screw holes. ●For repairing and making screw threads. Applications: ●Workpiece: Iron, light metals. Specifications: ●Tip: Tip ●Accuracy: JIS Class 3 ●Accuracy notation: JIS Class 3 ●Nominal size: M10 ●Pitch (mm): 1.25 ●Thread length (mm): 32 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 8.75 ●Machined thread: Metric thread ●Surface treatment: Non-coated Material/Finish: ●Low alloy steel (SKS) Note: ●Cannot be used with stainless steel. ●Dimensions M42 to M120 are listed on Orange Book.com.
