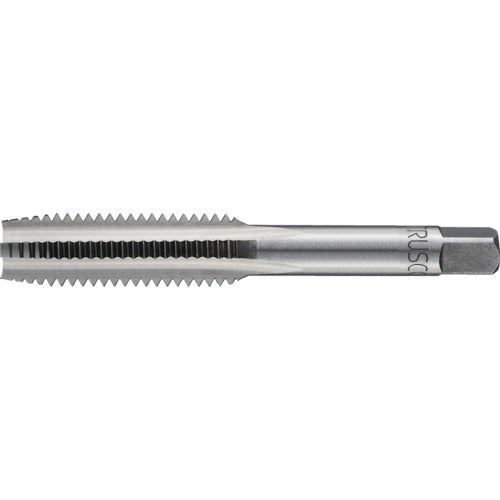

TRUSCO Hand Tap SKS 5/8W11 Finish T-HT5/8W11-3 1 Piece

Catalog number: T-HT5/8W11-3 Features: ●Used for making and cleaning screw holes. ●For repairing and making threads. Applications: ●Workpiece: Iron, light metals. ●For repairing and making regular threads. Specifications: ●Tip: Top ●Accuracy: JIS Class 3 ●Accuracy notation: JIS Class 3 ●Nominal dimensions: W5/8 ●Thread length (mm): 45 ●Total length (mm): 95 ●Shank diameter (mm): 12 ●Shank square section (mm): 9 ●Pilot hole diameter (mm): 13.5 ●Number of threads: 11 ●Machined thread: Machining thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 4 ●Number of engaging threads: 1.5 ●Thread length (mm): 95 Material/Finish: ●Low alloy steel (SKS) Caution: ●Cannot be used with stainless steel.
