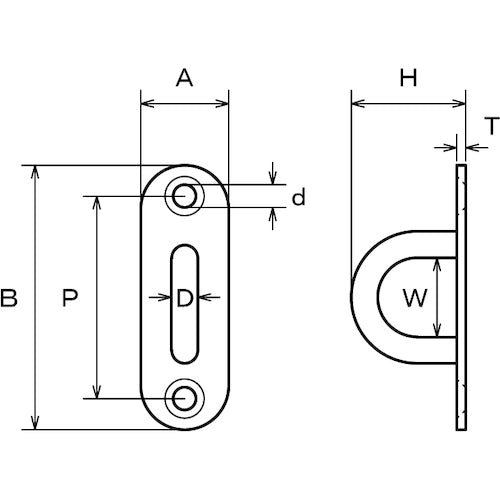

Catalog number: TPD-12 Features: ●Can be installed even on surfaces with narrow installation width. Applications: ●For installation on pillars, walls, etc. Specifications: ●Working load (kN): 1.18 ●A (mm): 35 ●D (mm): 12 ●B (mm): 120 ●H (mm): 51.8 ●P (mm): 90 ●W (mm): 40 ●d (mm): 8 ●T (mm): 4.8 ●TPD-12 is a type without a counterbore. Material/Finish: ●Stainless steel (SUS304) Note: ●TPD-12 is a type without a counterbore.
