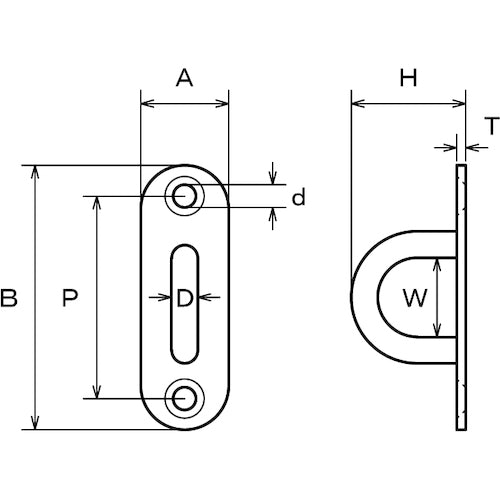

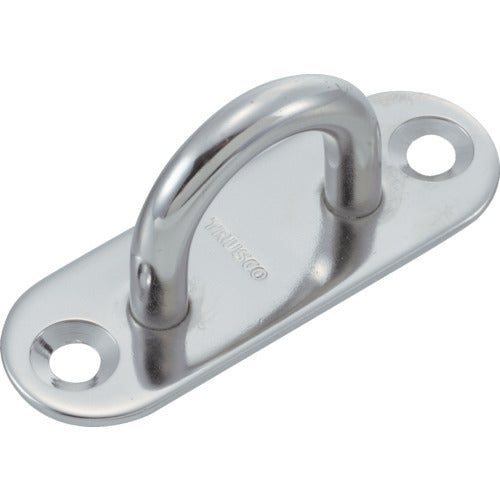

Catalog number: TPD-9 Features: ●Can be installed even on surfaces with narrow installation width. Applications: ●For installation on posts and walls. Specifications: ●Working load (kN): 0.59 ●A(mm): 32 ●D(mm): 9 ●B(mm): 100 ●H(mm): 38 ●P(mm): 73 ●W(mm): 25 ●d(mm): 6.2 ●T(mm): 3 Material/Finish: ●Stainless steel (SUS304) Caution: ●Please use countersunk head screws. ●TPD-12 is a type without counterbore.
