TRUSCO Easypict 50 pictogram bracket, 1 piece, EP-AA700, 1 piece

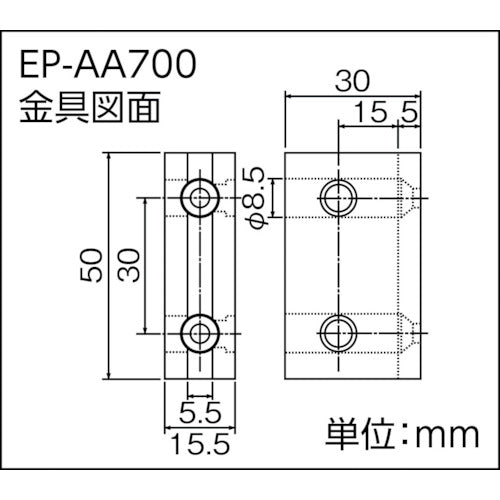

Catalog number: EP-AA700 Features: ● Troublesome installation of pictograms can be simplified. ● Easy installation by drilling two Φ7 holes in the sign panel. ● Installation to the wall is done by directly driving screws into the metal fittings without using separate parts, reducing the labor of installation and making positioning easy. Specifications: ● Hole diameter of mounting object (mm): 7 ● Metal fitting size (mm) width x depth x height: 15.5 x 50 x 30 ● Number of mounting holes (pcs): 2 ● Countersunk screw diameter used: 4mm (sold separately) ● Hole diameter of mounting object: 7mm ● Clamping plate thickness: For 5mm Material/Finish: ● Brass ● Surface treatment: Chrome plating finish Caution: ● Do not use power tools to tighten the fixing screws.
