TRUSCO Ferrule Crimp Terminal with Insulation Sleeve Twin Type 1.0-8 100 Pieces FTT1008-R 1 Bag

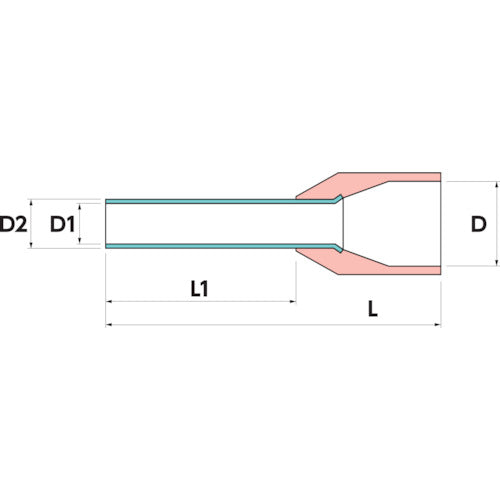

Catalog number: FTT1008-R Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming apart. ● Can connect two wires as one wire. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 2 x 1.0 ● Wire compatibility range AWG: 18 ● Color: Red ● L (mm): 15.1 ● L1 (mm): 8 ● D (mm): 5.5 ● D1 (mm): 2.1 ● D2 (mm): 2.4 ● For connecting two wires ● Equivalent to UL standard ● Heat resistance temperature (℃): 105℃ ● Maximum voltage: 600V Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
