TRUSCO Ferrule Crimp Terminal with Insulation Sleeve Twin Type 1.5-12 100 Pieces FTT1512-BK 1 Bag

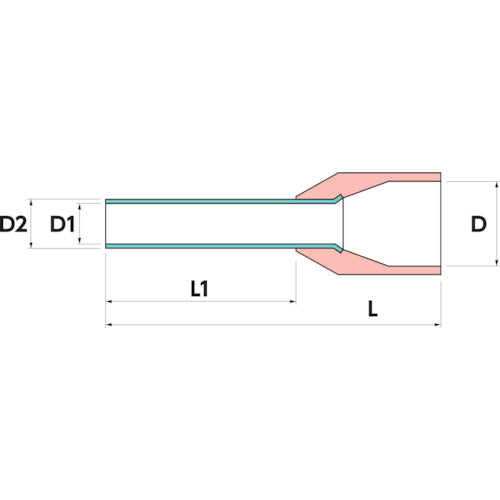

Catalog number: FTT1512-BK Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming apart. ● Can connect two wires as one wire. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 2 x 1.5 ● Wire compatibility range AWG: 16 ● Color: Black ● L (mm): 19.5 ● L1 (mm): 12 ● D (mm): 6.5 ● D1 (mm): 2.3 ● D2 (mm): 2.6 ● For connecting two wires ● Equivalent to UL standard ● Heat resistance temperature (℃): 105℃ ● Maximum voltage: 600V Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
