TRUSCO Ferrule Crimp Terminal with Insulation Sleeve 16-18 100 Pieces FT16018-BL 1 Bag

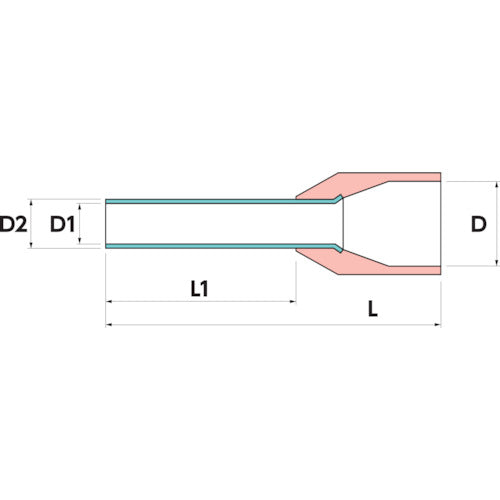

Catalog number: FT16018-BL Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming loose. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 16 ● Wire compatibility range AWG: 6 ● Color: Blue ● L (mm): 28 ● L1 (mm): 18 ● D (mm): 8.8 ● D1 (mm): 5.8 ● D2 (mm): 6.2 ● UL standard equivalent product ● Heat resistance temperature (℃): 105 ● Maximum voltage (V): 600 Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
