TRUSCO Ferrule Crimp Terminal with Insulation Sleeve 2.5-8 100 Pieces FT2508-BL 1 Bag

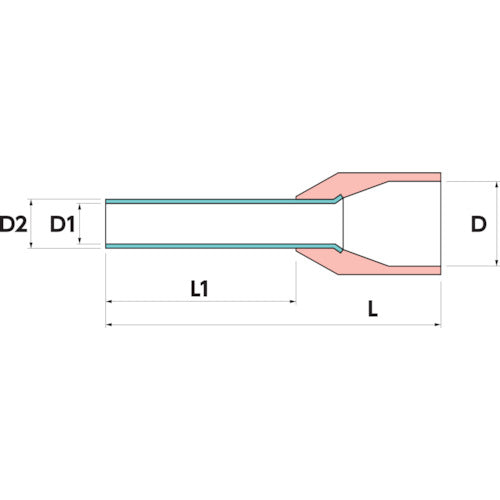

Catalog number: FT2508-BL Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming loose. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 2.5 ● Wire compatibility range AWG: 14 ● Color: Blue ● L (mm): 15.4 ● L1 (mm): 8 ● D (mm): 4.2 ● D1 (mm): 2.2 ● D2 (mm): 2.5 ● UL standard equivalent product ● Heat resistance temperature (℃): 105 ● Maximum voltage (V): 600 Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
