TRUSCO Ferrule Crimp Terminal with Insulation Sleeve 4-18 100 Pieces FT4018-GY 1 Bag

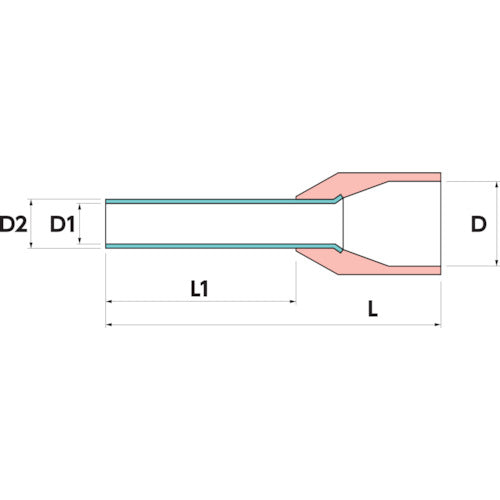

Catalog number: FT4018-GY Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming loose. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 4.0 ● Wire compatibility range AWG: 12 ● Color: Gray ● L (mm): 25.4 ● L1 (mm): 18 ● D (mm): 4.8 ● D1 (mm): 2.8 ● D2 (mm): 3.2 ● UL standard equivalent product ● Heat resistance temperature (℃): 105 ● Maximum voltage (V): 600 Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
