TRUSCO Ferrule Crimp Terminal with Insulation Sleeve 6-12 100 Pieces FT6012-Y 1 Bag

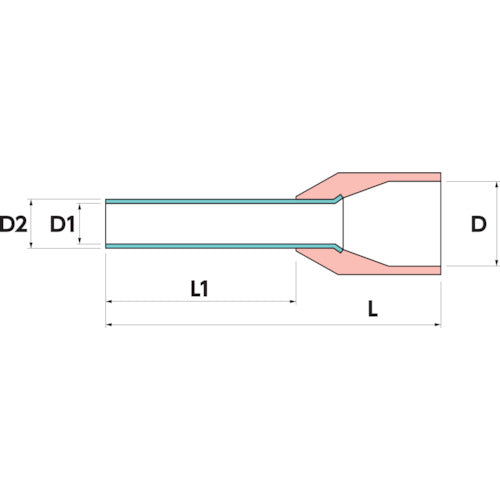

Catalog number: FT6012-Y Features: ● Ferrule terminal used for push-in type European terminal blocks. ● Insulating sleeve is color-coded for easy size identification. ● Prevents wires from coming loose. Applications: ● For connecting push-in type terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 6.0 ● Wire compatibility range AWG: 10 ● Color: Yellow ● L (mm): 20.5 ● L1 (mm): 12 ● D (mm): 6.3 ● D1 (mm): 3.5 ● D2 (mm): 3.9 ● UL standard equivalent product ● Heat resistance temperature (℃): 105 ● Maximum voltage (V): 600 Material/Finish: ● Copper (tin-plated) ● Insulating sleeve: Nylon
