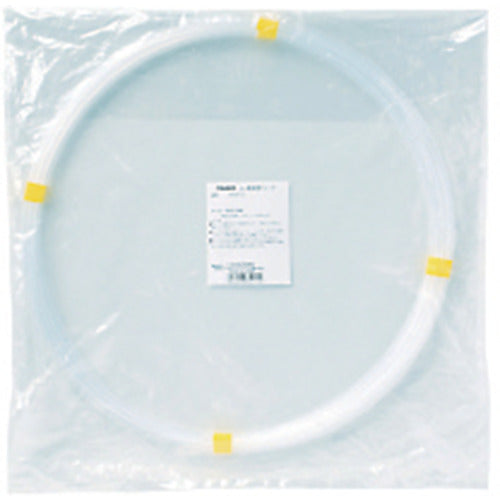

TRUSCO Fluororesin Tube, Inner Diameter 10mm x Outer Diameter 12mm, Length 20m, TPFA12-20, 1 Roll

Catalog number: TPFA12-20 Features: ●Uses fluororesin (PFA) with excellent heat and chemical resistance. ●The inner surface of the tube is smooth and non-sticky, making it less likely to get dirty and hygienic. ●Fitting tube for corrosion-resistant environments. Applications: ●Food, chemical, medical, and semiconductor manufacturing. Specifications: ●Color: Translucent ●Inner diameter (mm): 10 ●Outer diameter (mm): 12 ●Total length (m): 20 ●Minimum bending radius (mm): 200 ●Operating pressure (MPa): 0.8 ●Compatible fluids: Air, water (conditions apply), chemicals (conditions apply), etc. ●Operating temperature range: -60 to 260°C Material/Finish: ●Fluororesin (PFA) Caution: ●・Use at or below the maximum operating pressure for surge pressure due to the incompressibility of water and liquids. ●The operating temperature range is the heat resistance temperature of the material. In the case of tubes, pressure resistance is temperature dependent, so please refer to the calculation method for the temperature-specific burst pressure in the separate table for normal operating pressure and use with sufficient margin. ●Please leave a generous bend radius when using the product. ●Stop using the product if you notice any defects such as scratches or deformation on the tube.
