TRUSCO Flange Nut with Serrated Stainless Steel M10 6 Pieces B134-0010 1 PK

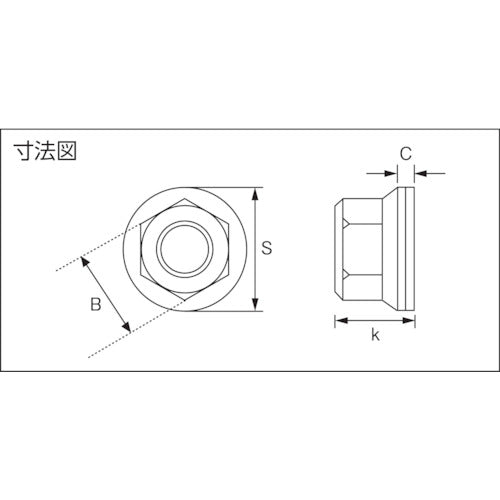

Catalog number: B134-0010 Features: ● Washer (flange) and hexagonal nut are integrated, so you can expect a loosening prevention effect. Specifications: ● Nominal diameter: M10 x 1.50 ● Two-sided width dimension (mm): 14 ● Height (mm): 9.0 ● Flange diameter (mm): 19.0 ● Thread pitch (mm): 1.5 ● Dimension (mm) B: 14.0 ● Dimension (mm) C: 1.8 ● Dimension (mm) S: 19.0 ● Dimension (mm) k: 9.0 ● Two-sided width B (mm): 14.0 ● Package: Bolt-on pack (blister) ● Serrated (with serrated seat surface) Material/Finish: ● Stainless steel (equivalent to SUS304)
