TRUSCO Flange Nuts with Serrations Stainless Steel M12 Pack of 4 B134-0012 1 PK

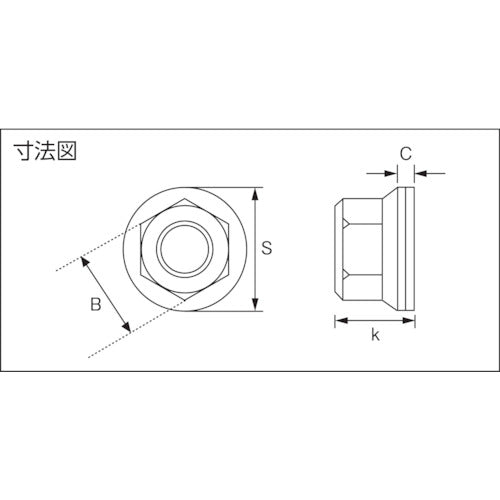

Catalog number: B134-0012 Features: ● Washer (flange) and hexagonal nut are integrated, so you can expect a loosening prevention effect. Specifications: ● Nominal diameter: M12 x 1.75 ● Two-sided width dimension (mm): 17 ● Height (mm): 11.0 ● Flange diameter (mm): 24.0 ● Thread pitch (mm): 1.75 ● Dimension (mm) B: 17.0 ● Dimension (mm) C: 1.8 ● Dimension (mm) S: 24.0 ● Dimension (mm) k: 11.0 ● Two-sided width B (mm): 17.0 ● Package: Bolt-on pack (blister) ● Serrated (with serrated seat surface) Material/Finish: ● Stainless steel (equivalent to SUS304)
