TRUSCO Flange Nuts with Serrations Stainless Steel M8 8 Pieces B134-0008 1 PK
TRUSCO Flange Nuts with Serrations Stainless Steel M8 8 Pieces B134-0008 1 PK
Regular price
¥530
Regular price
Sale price
¥530
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

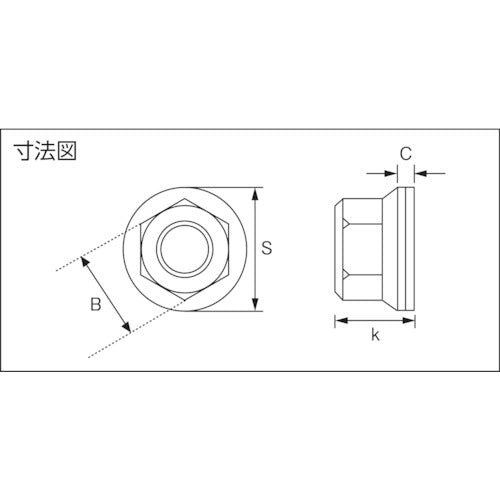

Catalog number: B134-0008 Features: ● Washer (flange) and hexagonal nut are integrated, so you can expect a loosening prevention effect. Specifications: ● Nominal diameter: M8 x 1.25 ● Two-sided width dimension (mm): 12 ● Height (mm): 7.5 ● Flange diameter (mm): 17.0 ● Thread pitch (mm): 1.25 ● Dimension (mm) B: 12.0 ● Dimension (mm) C: 1.5 ● Dimension (mm) S: 17.0 ● Dimension (mm) k: 7.5 ● Two-sided width B (mm): 12.0 ● Package: Bolt-on pack (blister) ● Serrated (with serrations on the seating surface) Material/Finish: ● Stainless steel (equivalent to SUS304)
