TRUSCO Flange Nuts, Unichrome, M10 x 1.5, Pack of 40, B79-0010, 1 PK

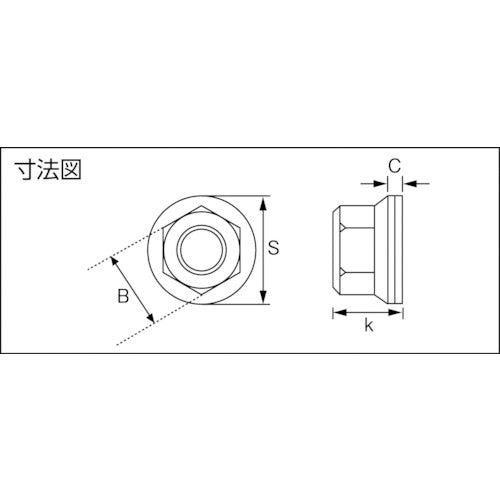

Catalog number: B79-0010 Features: ● Washer (flange) and hexagonal nut are integrated, so you can expect a loosening prevention effect. Specifications: ● Nominal diameter: M10 x 1.50 ● Two-sided width dimension (mm): 14 ● Height (mm): 9 ● Flange diameter (mm): 19 ● Strength category: 4T (compatible bolt strength category: 3.6, 4.6, 4.8) ● Thread pitch (mm): 1.5 ● Dimension (mm) B: 14.0 ● Dimension (mm) C: 1.8 ● Dimension (mm) S: 19.0 ● Dimension (mm) k: 9.0 ● Dimension (mm) s: 14.0 ● Dimension (mm) e: 19.0 ● Package: Bolt pack (blister) ● With serrations (with serrations on the seat surface) Material/Finish: ● Steel (equivalent to SWRCH10R) ● Surface treatment: Nickel-plated finish
