TRUSCO Flange Nuts, Unichrome, M12 x 1.75, 19 Pieces, B79-0012, 1 PK

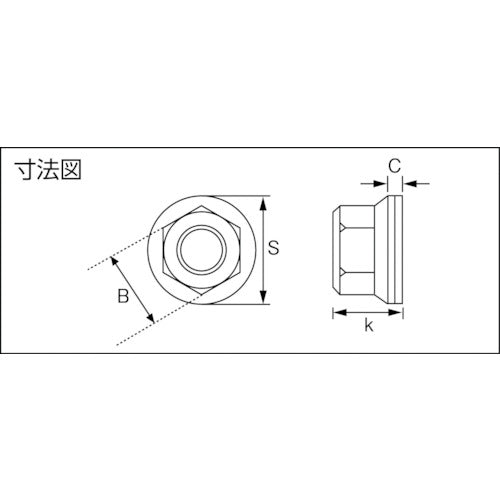

Catalog number: B79-0012 Features: ● Washer (flange) and hexagonal nut are integrated, so you can expect a loosening prevention effect. Specifications: ● Nominal diameter: M12 x 1.75 ● Two-sided width dimension (mm): 17 ● Height (mm): 11 ● Flange diameter (mm): 24 ● Strength category: 4T (compatible bolt strength category: 3.6, 4.6, 4.8) ● Thread pitch (mm): 1.75 ● Dimension (mm) B: 17.0 ● Dimension (mm) C: 1.8 ● Dimension (mm) S: 24.0 ● Dimension (mm) k: 11.0 ● Dimension (mm) s: 17.0 ● Dimension (mm) e: 24.0 ● Package: Bolt pack (blister) ● With serrations (with serrations on the seat surface) Material/Finish: ● Steel (equivalent to SWRCH10R) ● Surface treatment: Nickel-plated finish
