TRUSCO Blind Rivet (Aluminum/Iron) 4-6 60 pieces AT-46 1 PK

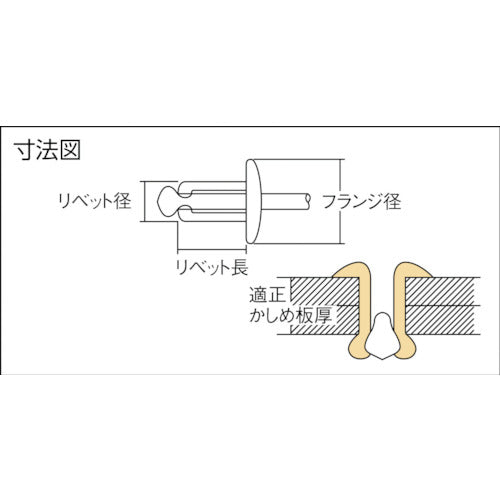

Catalog number: AT-46 Features: ● Blind rivets can easily fasten components to base materials that are difficult to reach on the back side or sealed thin plates. ● Rivets, unlike screws, do not loosen due to vibration. Applications: ● Trucks, buses, refrigerated car panels, trains, jet skis, home electrical appliances, lighting fixtures, steel furniture, etc. ● Sashes, gates, verandas, shutters, signs, stepladders, kitchen equipment, etc. Specifications: ● Crimping plate thickness (mm): 8.0-9.5 ● Rivet length (mm): 12.3 ● Flange diameter (mm): 6.4 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.3 ● Shear load (N): 930 ● Tensile load (N): 1320 ● Packed Material/Finish: ● Rivet body (flange): Aluminum (A5052) ● Mandrel (shaft): Steel (carbon steel)
