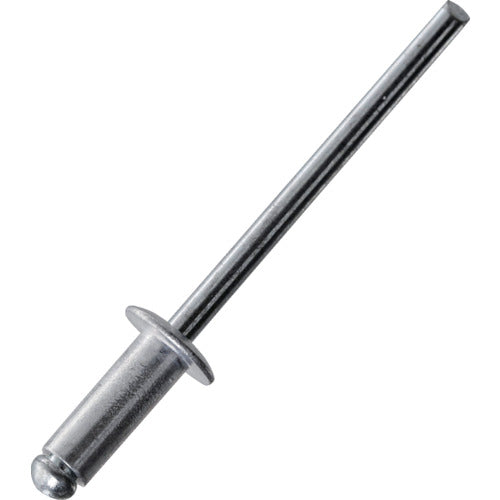

TRUSCO Blind Rivet (Aluminum/Iron) 5-4 55 pieces AT-54A 1 PK

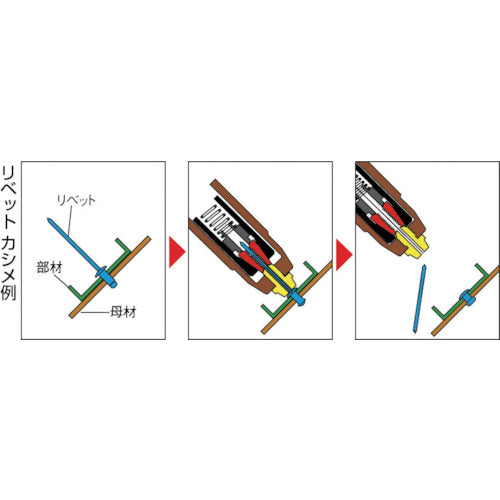

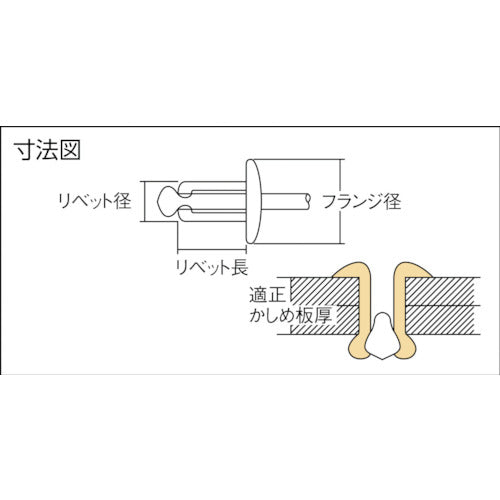

Catalog number: AT-54A Features: ● Blind rivets can easily fasten components to base materials that are difficult to reach on the back side or sealed thin plates. ● Rivets, unlike screws, do not loosen due to vibration. Applications: ● Trucks, buses, refrigerated car panels, trains, jet skis, home electrical appliances, lighting fixtures, steel furniture, etc. ● Sash windows, gates, verandas, shutters, signs, stepladders, kitchen equipment, etc. Specifications: ● Crimping plate thickness (mm): 4.8-6.4 ● Rivet length (mm): 9.8 ● Flange diameter (mm): 8.0 ● Rivet diameter (mm): 4.0 ● Pilot hole diameter (mm): 4.1 ● Shear load (N): 1420 ● Tensile load (N): 2250 ● Packed Material/Finish: ● Rivet body (flange): Aluminum (A5052) ● Mandrel (shaft): Steel (carbon steel)
