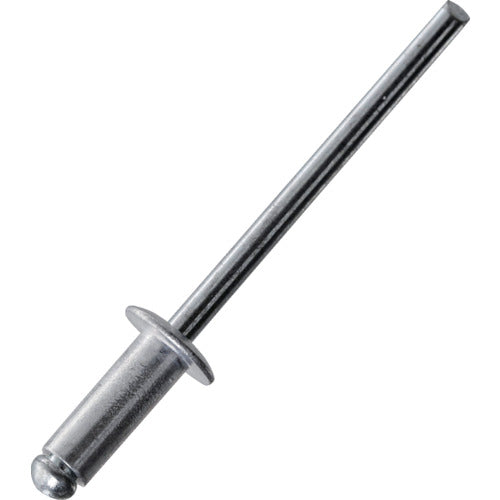

TRUSCO Blind Rivet (Aluminum/Iron) 5-6 (1000 pieces) AT-56C 1 box

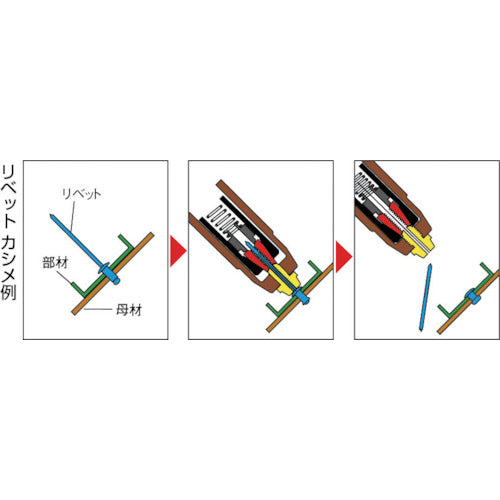

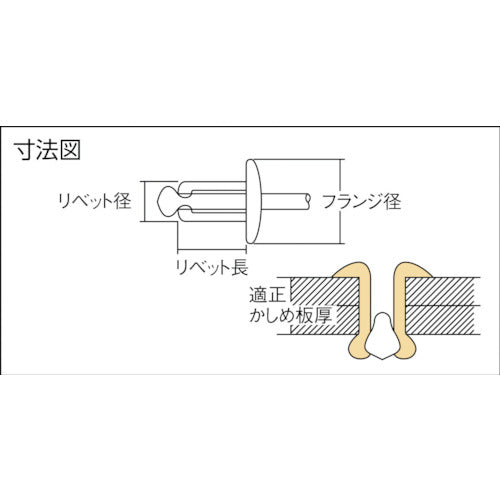

Catalog number: AT-56C Features: ●Blind rivets can easily fasten components to base materials that are difficult to reach on the back side or sealed thin plates. ●Unlike screws, rivets do not loosen due to vibration. Applications: ●Trucks, buses, refrigerated car panels, trains, jet skis, home electrical appliances, lighting fixtures, steel furniture, etc. ●Sashes, gates, verandas, shutters, signs, stepladders, kitchen equipment, etc. Specifications: ●Crimped plate thickness (mm): 8.0-9.5 ●Rivet length (mm): 12.9 ●Flange diameter (mm): 8.0 ●Rivet diameter (mm): 4.0 ●Pilot hole diameter (mm): 4.1 ●Shear load (N): 1420 ●Tensile load (N): 2250 ●Boxed Material/Finish: ●Rivet body (flange): Aluminum (A5052) ●Mandrel (shaft): Steel (carbon steel)
