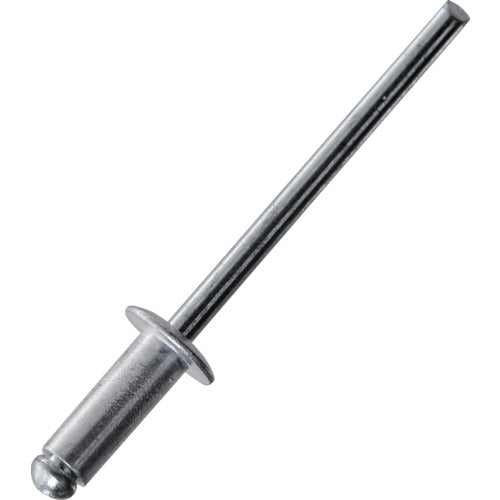

TRUSCO Blind Rivet (Aluminum/Iron) 6-6 35pcs AT-66A 1PK

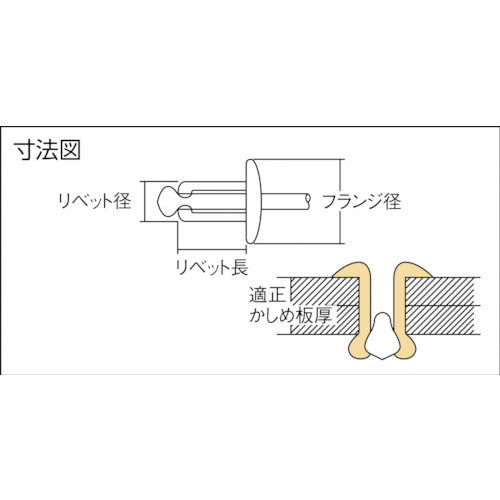

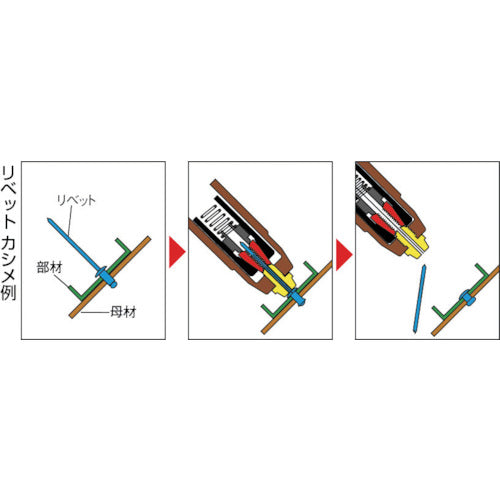

Catalog number: AT-66A Features: ● Blind rivets can easily fasten components to base materials that are difficult to reach on the back side or sealed thin plates. ● Rivets, unlike screws, do not loosen due to vibration. Applications: ● Trucks, buses, refrigerated car panels, trains, jet skis, home electrical appliances, lighting fixtures, steel furniture, etc. ● Sash windows, gates, verandas, shutters, signs, stepladders, kitchen equipment, etc. Specifications: ● Crimping plate thickness (mm): 8.0-9.5 ● Rivet length (mm): 13.5 ● Flange diameter (mm): 9.6 ● Rivet diameter (mm): 4.8 ● Pilot hole diameter (mm): 4.9 ● Shear load (N): 2200 ● Tensile load (N): 3190 ● Packed Material/Finish: ● Rivet body (flange): Aluminum (A5052) ● Mandrel (shaft): Steel (carbon steel)
