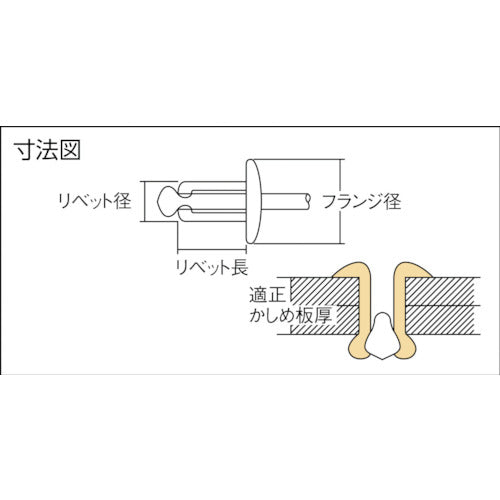

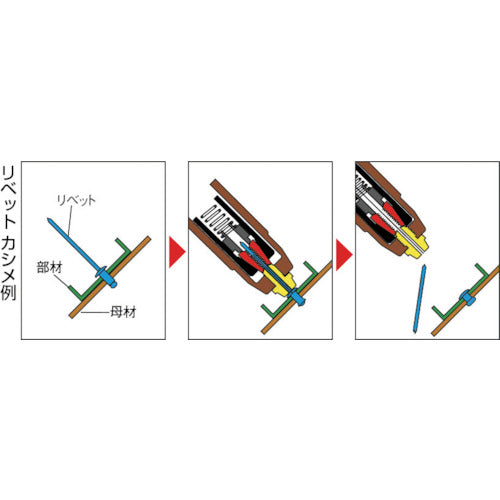

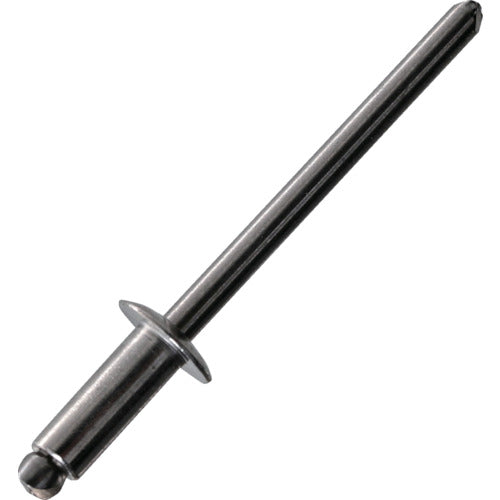

Catalogue number: SS-43C Features: *Blind rivets can easily fasten components to base materials that are difficult to reach on the back side or sealed thin plates. *Unlike screws, rivets will not loosen due to vibration. *All stainless steel for strength and excellent corrosion resistance. Applications: *Ideal for areas that require rust prevention and strength. *Trucks, buses, refrigerated vehicle panels, trains, jet skis, home electrical appliances, lighting fixtures, steel furniture, etc. *Sashes, gates, verandas, shutters, signs, stepladders, kitchen equipment, etc. Specifications: ● Crimping plate thickness (mm): 3.2-4.8 ● Rivet length (mm): 7.6 ● Flange diameter (mm): 6.4 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.3 ● Shear load (N): 2160 ● Tensile load (N): 2550 ● Boxed Material/Finish: ● Rivet body (flange): Stainless steel (SUS305) ● Mandrel (shaft): High tensile stainless steel
