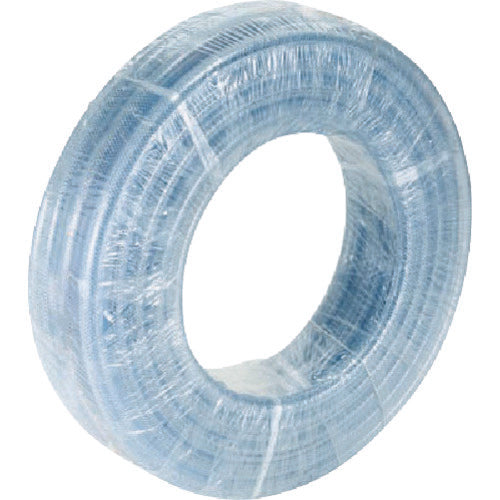

TRUSCO Braided Hose 12X18mm 20m TB-1218-D20 1 roll

Catalog number: TB-1218-D20 Features: ●Excellent pressure resistance, elasticity, resilience, and bending strength. ●Part numbers are available for fractional lengths (please change the end of the part number to the desired length). Applications: ●Industrial air and water piping for machine tools, molding machines, factory equipment, etc. Specifications: ●Length (m): 20 ●Inner diameter (mm): 12 ●Outer diameter (mm): 18 ●Operating pressure (MPa): 1.0 ●Allowable bending radius (mm or more): 85 ●Type: Tire ●Operating temperature range (℃): 0 to 60 ●Color: Clear Material/Finish: ●Soft polyvinyl chloride resin (PVC) + polyester thread included Caution: ●Do not use in places where the connecting fittings may be subjected to impact or get caught on something (such as floor steps or seams in checkered steel plates). ●This may cause unexpected accidents such as the connecting fittings flying out. ●When separating the connecting fittings, hold the fittings in your hand. ●After connecting the connecting fittings, gently pull them from both sides to make sure they do not come loose. ●Please use couplings designed specifically for blade hoses.
