TRUSCO Pressed Urethane Caster, Swivel, Φ200, TUJ-200, 1 pc

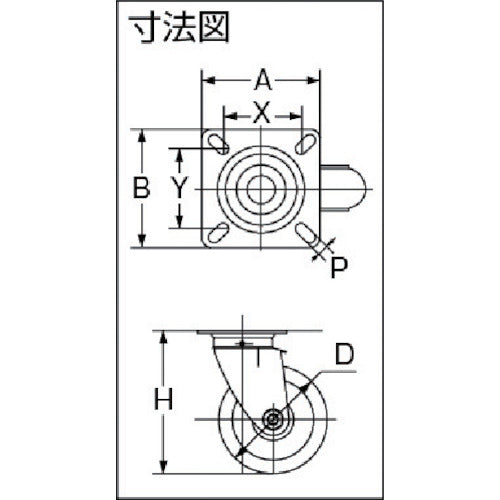

Catalog number: TUJ-200 Features: *The steel wheels have a distinctive star shape with a good design. *The swivel section uses double bearings to achieve smooth rotation. *The wheel rotation section uses commercial bearings for excellent durability. *The urethane wheels are highly resistant to wear and oil. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling ● Allowable load (daN): 400 ● Allowable load (kgf): 408 ● Wheel width (mm): 46 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-115 ● Mounting pitch Y (mm): 100-115 ● Mounting hole diameter P (mm): 11.5 ● Allowable load (N): 4000 ● Plate type ● Free-wheeling Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, urethane (green)
