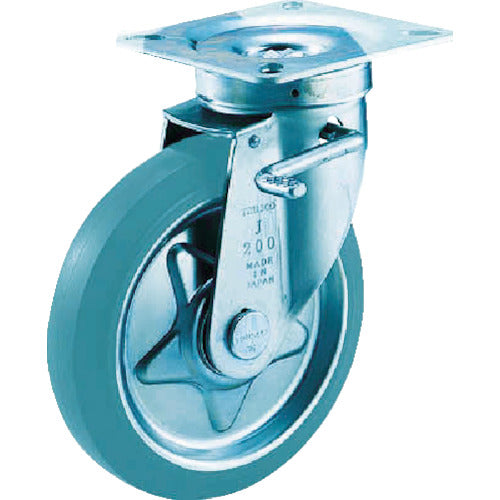

TRUSCO Pressed Gray Rubber Caster with Swivel Double Stopper Φ100 TJB-100G 1 pc

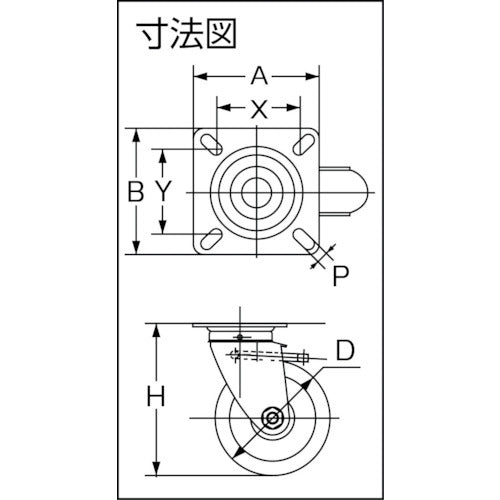

Catalog number: TJB-100G Features: *Gray rubber is used for the wheels, which helps reduce tire marks on the floor. *The steel wheels have a distinctive star shape that is well designed. *The swivel section uses double bearings to ensure smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. Uses: ● For mounting on transport carts, etc., for tire mark-free operation Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 78 ● Allowable load (kgf): 80 ● Wheel width (mm): 35 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 67-74 ● Mounting pitch Y (mm): 67-74 ● Mounting hole diameter P (mm): 10.5 ● Plate thickness (mm): 4.0 ● Plate type ● Radial bearing included ● Free-wheeling (with double stoppers) ● Locks swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, grey rubber
