TRUSCO Pressed Gray Rubber Caster with Swivel Double Stopper Φ130 TJB-130G 1 pc
TRUSCO Pressed Gray Rubber Caster with Swivel Double Stopper Φ130 TJB-130G 1 pc
Regular price
¥4,055
Regular price
Sale price
¥4,055
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

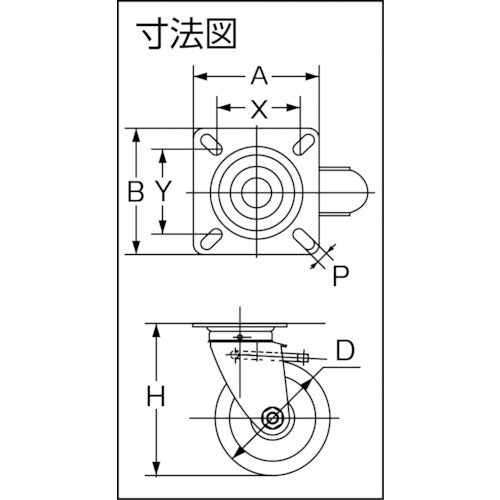

Catalog number: TJB-130G Features: *Gray rubber is used for the wheels, which helps reduce tire marks on the floor. *The steel wheels have a distinctive star shape that is well designed. *The swivel section uses double bearings to ensure smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. Uses: ● For mounting on transport carts, etc., for tire mark-free operation Specifications: ● Wheel diameter D (mm): 130 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 147 ● Allowable load (kgf): 150 ● Wheel width (mm): 42 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 110 ● Mounting pitch X (mm): 75-90 ● Mounting pitch Y (mm): 75-90 ● Mounting hole diameter P (mm): 11.0 ● Plate thickness (mm): 4.0 ● Plate type ● Radial bearing included ● Free-wheeling (with double stoppers) ● Locks swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, grey rubber
