TRUSCO Pressed Gray Rubber Caster, Swivel, Φ200, TJ-200G, 1 pc

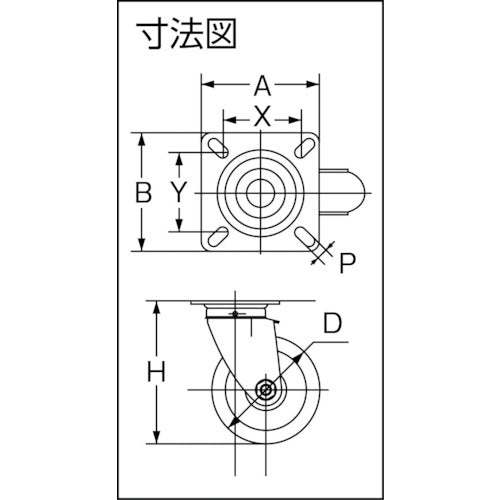

Catalog number: TJ-200G Features: *Gray rubber is used for the wheels, which helps reduce tire marks on the floor. *The steel wheels have a distinctive star shape that is well designed. *The swivel section uses double bearings to ensure smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. Uses: ● For mounting on transport carts, etc., for tire mark-free operation Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-moving ● Allowable load (daN): 225 ● Allowable load (kgf): 230 ● Wheel width (mm): 46 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-115 ● Mounting pitch Y (mm): 100-115 ● Mounting hole diameter P (mm): 11.5 ● Plate thickness (mm): 4.5 ● Plate type ● With radial bearing ● Free-moving operation Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, grey rubber
