TRUSCO Pressed Gray Rubber Caster, Swivel, Φ75, TJ-75G, 1 pc

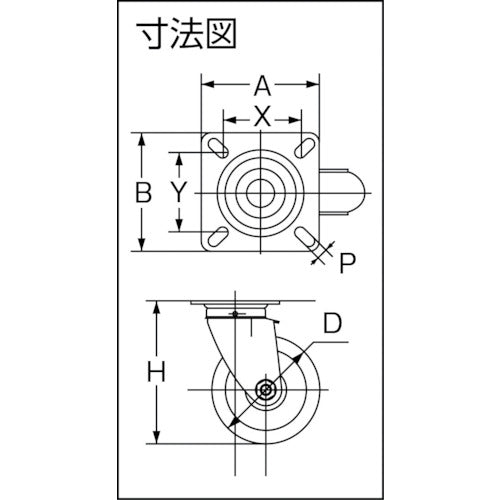

Catalog number: TJ-75G Features: *Gray rubber is used for the wheels, which helps reduce tire marks on the floor. *The steel wheels have a distinctive star shape that is well designed. *The swivel section uses double bearings to ensure smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. Uses: ● For mounting on transport carts, etc., for tire mark-free operation Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-moving ● Allowable load (daN): 64 ● Allowable load (kgf): 65 ● Wheel width (mm): 32 ● Mounting height H (mm): 100 ● Mounting seat A (mm): 82 ● Mounting seat B (mm): 82 ● Mounting pitch X (mm): 63 ● Mounting pitch Y (mm): 63 ● Mounting hole diameter P (mm): 9.5 ● Plate thickness (mm): 2.3 ● Plate type ● With radial bearing ● Free-moving operation Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, grey rubber
