TRUSCO Pressed Rubber Caster Fixed Φ100 TK-100 1 pc

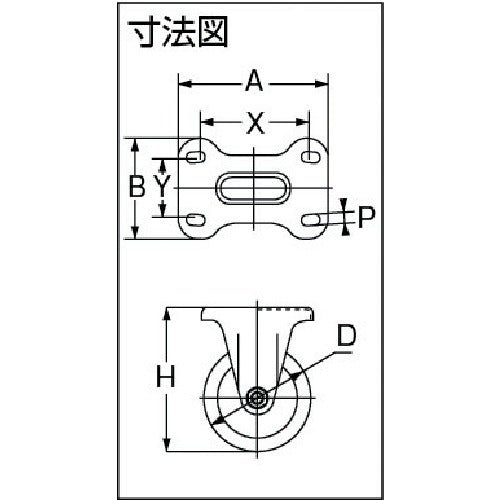

Catalog number: TK-100 Features: * The steel wheels have a distinctive star shape with a good design. * The wheel rotation part has a radial bearing and is highly durable. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 100 ● Allowable load (kgf): 102 ● Wheel width (mm): 35 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 80-90 ● Mounting pitch Y (mm): 45-50 ● Mounting hole diameter P (mm): 10.5 ● Allowable load (N): 1000 ● Caster diameter (mm): 100 ● Mounting seat (mm): 115 x 80 ● Mounting pitch (mm): 80-90 x 45-50 ● Wheel material: Rubber ● Plate type ● Free rotation part: With double bearings ● Wheel rotation part: With commercial bearings ● Fixed type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating ● Wheels: Steel wheels, rubber
