TRUSCO Pressed Rubber Caster with Swivel Double Stopper Φ150 TJB-150 1 pc

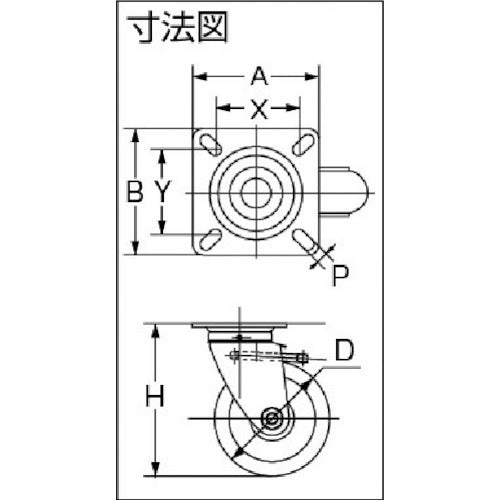

Catalog number: TJB-150 Features: *The steel wheels have a distinctive star shape with a good design. *The swivel section uses double bearings to achieve smooth rotation. *The wheel rotation section uses radial bearings for excellent durability. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 45 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 75-90 ● Mounting pitch Y (mm): 75-90 ● Mounting hole diameter P (mm): 11.0 ● Allowable load (N): 2000 ● Plate thickness (mm): 4.0 ● Plate type ● Free-wheeling part: Double bearing included ● Wheel rotation part: Commercial bearing included ● Free-wheeling (with double stoppers) ● Rotation part and wheels are locked simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating ● Wheels: Steel wheels, rubber
