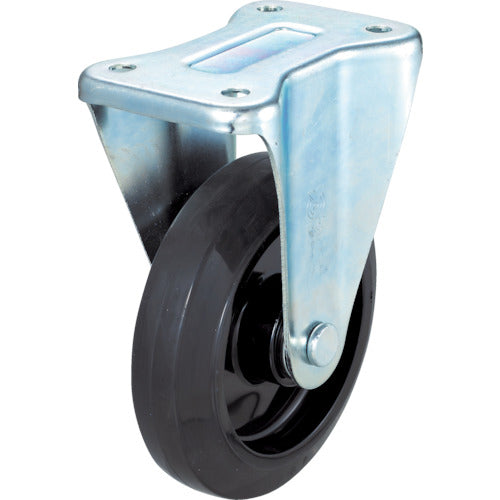

TRUSCO Pressed Nylon Wheel Rubber Caster Fixed Φ150 TYNRK-150 1 pc

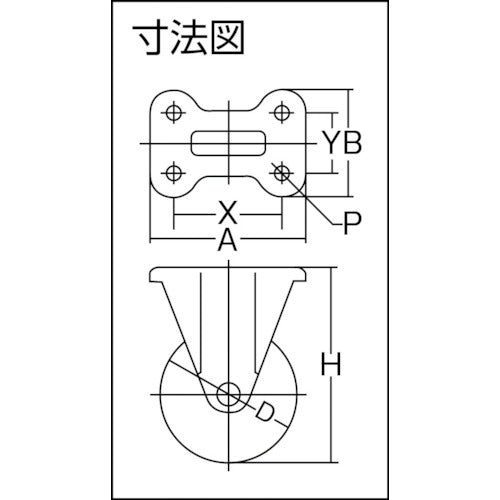

Catalog number: TYNRK-150 Features: ●Approximately 10% lighter than conventional pressed rubber wheels. ●When the stopper is engaged, the rotation of the wheel and the swivel caster can be stopped simultaneously with one action. Applications: ●For a wide range of applications, including office equipment, furniture, transport vehicles, and lightweight racks. Specifications: ●Wheel diameter D (mm): 150 ●Type: Fixed type ●Allowable load (daN): 200 ●Allowable load (kgf): 204.0 ●Wheel width (mm): 40 ●Mounting height H (mm): 198 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 93 ●Mounting pitch X (mm): 100 ●Mounting pitch Y (mm): 56 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 1800 ●Plate type ●Commercial bearing included ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheels, rubber
