TRUSCO Pressed Nylon Wheel Rubber Caster with Swivel Stopper Φ130 TYNRJB-130A 1 pc

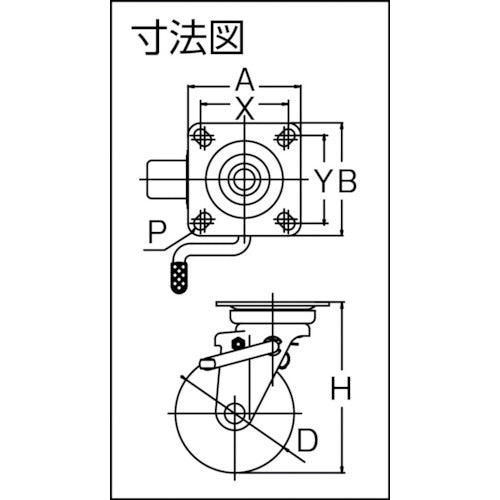

Catalog number: TYNRJB-130A Features: ●Approximately 10% lighter than conventional pressed rubber wheels. ●By applying the stopper, the rotation of the wheels and the swivel caster can be stopped simultaneously with one action. Applications: ●For a wide range of applications, including office equipment, furniture, transport vehicles, and lightweight racks. Specifications: ● Wheel diameter D (mm): 130 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 180 ● Allowable load (kgf): 183.6 ● Wheel width (mm): 40 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 105 ● Mounting seat B (mm): 105 ● Mounting pitch X (mm): 75-82 ● Mounting pitch Y (mm): 75-82 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1600 ● Plate type ● Commercial bearing included ● Free-wheeling (with double stoppers) ● Locks the swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheels, rubber
