TRUSCO Pressed Nylon Wheel Rubber Caster, Swivel, Left Brake Sign Plate, 150Φ, TWRJB-150LSP, 1 pc

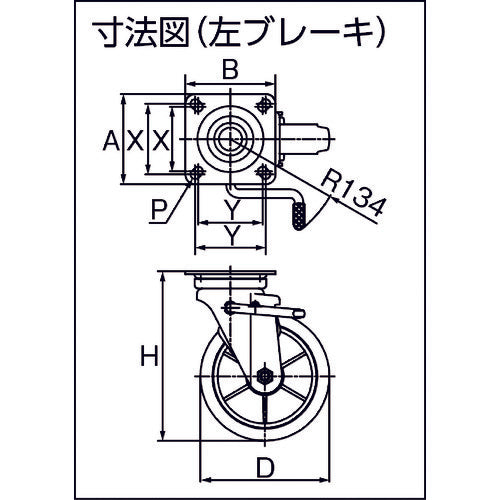

Catalogue number: TWRJB-150LSP Features: ● A brake mark is attached to the wheel so that the wheels that are braked can be visually checked. Specifications: ● Wheel diameter D (mm): 150 ● Type: Swivel ● Allowable load (daN): 200 ● Allowable load (kgf): 204.0 ● Wheel width (mm): 34 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 87-94 ● Mounting pitch Y (mm): 87-94 ● Mounting hole diameter P (mm): 11 ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent chromium finish ● Wheels: Nylon wheel, rubber ● Sign plate: 6 nylon
