TRUSCO Pressed Noise-reducing Caster Stainless Steel Fittings Swivel Φ100 TXSUJ-100 1 pc

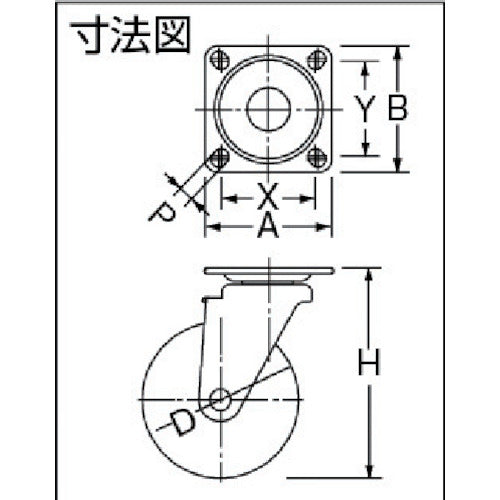

Catalog number: TXSUJ-100 Features: ● Stainless steel (SUS304) has excellent corrosion resistance and water resistance. ● The rotating part is sealed with rubber packing, etc., making it dustproof and waterproof. ● Free from unpleasant noises such as the running noise peculiar to casters. (Noise-free type) ● Resistance when starting to push is reduced, making it very easy to turn and rotate. ● The wheel has a unique star-shaped pattern. Uses: ● For mounting on transport carts, etc., for noise reduction Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-moving ● Allowable load (daN): 100 ● Allowable load (kgf): 102 ● Wheel width (mm): 33 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 67-74 ● Mounting pitch Y (mm): 67-74 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Plate type ● Swivel and rotating parts: Uses radial ball bearings ● Comes with drip-proof and dust-proof cover ● Free-moving Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Bearings: Steel ● Wheels: Nylon wheel, urethane (ivory, with stainless steel wheel cover)
