TRUSCO Pressed Noise-reducing Caster Fixed Φ100 TXUK-100 1 pc

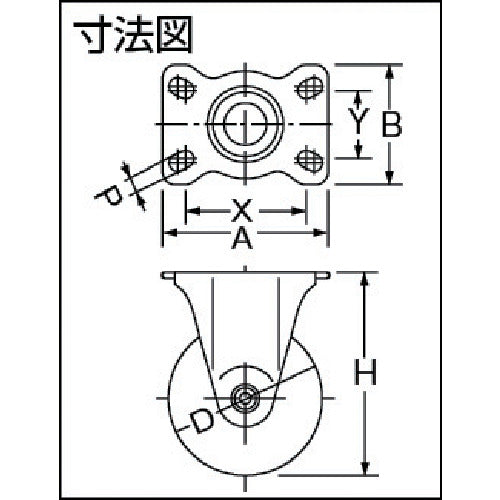

Catalog number: TXUK-100 Features: ●Free from unpleasant noises such as the running noise of casters. (Noise-free type) ●Reduced resistance when starting to push, making it very easy to turn and rotate. ●The wheels have a unique star-shaped pattern. Uses: ● For mounting on transport carts, etc., for noise reduction Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 100 ● Allowable load (kgf): 102 ● Wheel width (mm): 33 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 80-90 ● Mounting pitch Y (mm): 45-50 ● Mounting hole diameter P (mm): 11 ● Country of manufacture: Japan ● Allowable load (N): 1000 ● Wheel material: Nylon wheel urethane ● Caster diameter (mm): 100 ● Mounting seat (mm): 115 x 80 ● Mounting pitch (mm): 80-90 x 45-50 ● Plate type ● Fixed type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheel, urethane (ivory)
