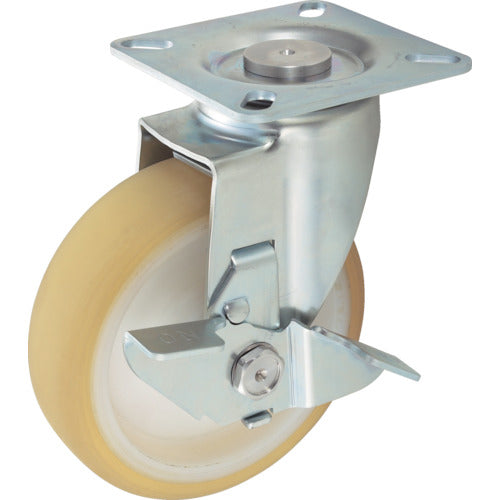

TRUSCO Pressed Noise-reducing Caster with Swivel Stopper Φ100 TXUJB-100 1 pc

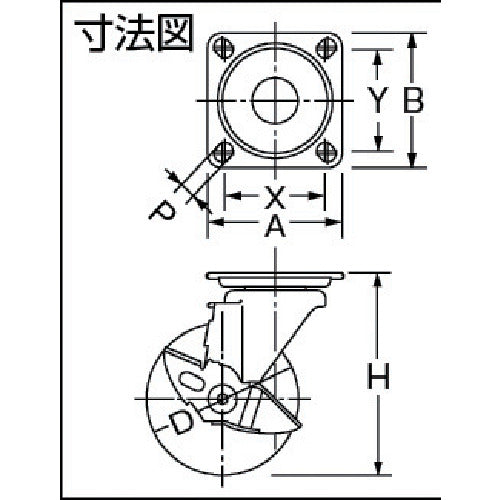

Catalog number: TXUJB-100 Features: ●Free from unpleasant noises such as the running noise of casters. (Noise-free type) ●Reduced resistance when starting to push, making it very easy to turn and rotate. ●The wheels have a unique star-shaped pattern. Uses: ● For mounting on transport carts, etc., for noise reduction Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 100 ● Allowable load (kgf): 102 ● Wheel width (mm): 33 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 67-74 ● Mounting pitch Y (mm): 67-74 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Plate type ● Swivel and rotating parts: Uses radial ball bearings ● Free-wheeling (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheel, urethane (ivory)
