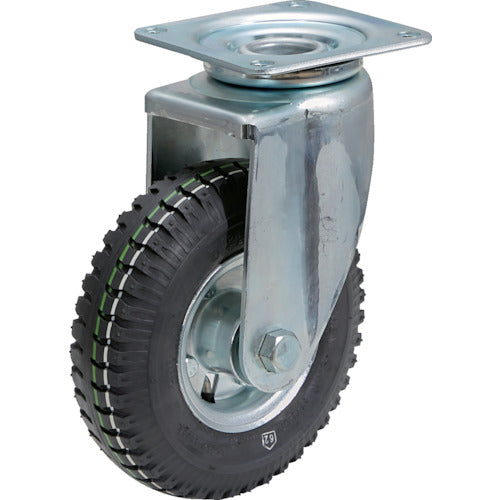

TRUSCO Press-made transport vehicle option Eco transport vehicle air tire swivel caster Φ220 rubber wheel SD-220ARJ 1 piece

Catalog number: SD-220ARJ Features: ● Air pressure cushioning softens the impact on uneven floors. Applications: ● Swivel casters for eco-friendly transport vehicles (pneumatic tires). Specifications: ● Compatible models: 502NAR ● Caster diameter (mm): 220 ● Allowable load (N): 850 ● Wheel diameter D (mm): 225 ● Wheel width (mm): 62 ● Mounting hole diameter P (mm): 14 ● Allowable load (kgf): 86.7 ● Mounting height H (mm): 290 ● Mounting seat A x B (mm): 140 x 140 ● Mounting pitch X x Y (mm): 112 x 112 ● Swivel ● Plate type Materials/Finish: ● Metal fittings: Steel ● Wheels: Styrene butadiene rubber (SBR) Note: ● The metal fittings are stamped with J250-4E, but this is the part number of the metal fittings. Please be careful.
