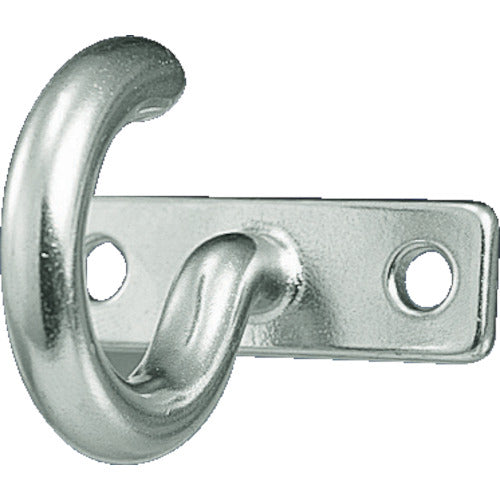

TRUSCO Plate Hook Stainless Steel D Dimension 10mm (1 piece = 1 bag) TPTF-10 1 piece

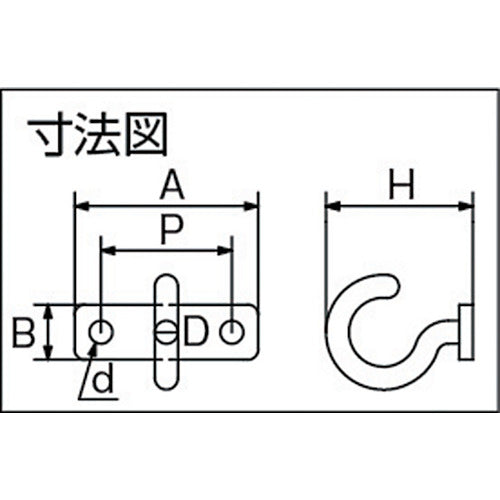

Catalog number: TPTF-10 Features: ●Can be installed even on surfaces with a narrow installation width. ●Since it is a type without a counterbore, please use screws with a pan head or similar. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ●Suspension load (N/kgf): 490/50 ●Usage load (kN): 0.49 ●A (mm): 58 ●B (mm): 18 ●D (mm): 8 ●H (mm): 58 ●P (mm): 40 ●d (mm): 8 ●h (mm): 58 Material/Finish: ●Stainless steel (SUS304)
