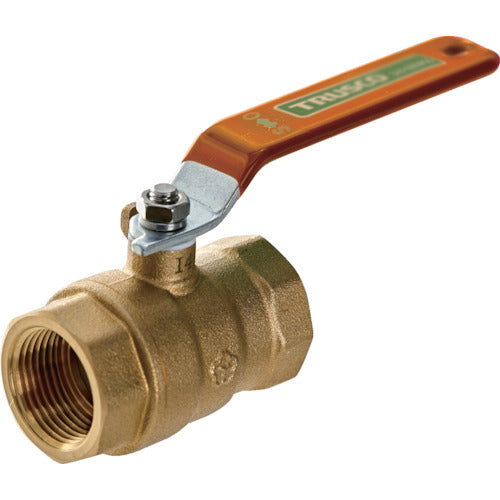

TRUSCO Ball Valve Full Bore (Large Flow) Type (600 Type, Brass) 1/2 BAV-BF15A 1 pc

Catalog number: BAV-BF15A Features: ● Ball valve for hot and cold water, oil, and air. ● Full bore type with small pressure loss, suitable for piping with large flow rates. Applications: ● For water, oil, and air. (Steam not allowed) Specifications: ● Nominal diameter A: 15 ● Nominal diameter B: 1/2 ● Overall length (mm): 49.0 ● Height (mm): 35.0 ● Handle length D (mm): 76.0 ● Maximum allowable pressure (MPa): 4.2MPa (water and oil at room temperature), 1.0MPa (air at room temperature), 0.7MPa (hot and cold water, oil, and air at 120 degrees or less) ● Maximum allowable pressure: 4.2MPa (water and oil at room temperature), 1.0MPa (air at room temperature), 0.7MPa (hot and cold water, oil, and air at 120 degrees or less) ● Full bore type Material/Finish: ● Brass (C3771B)
