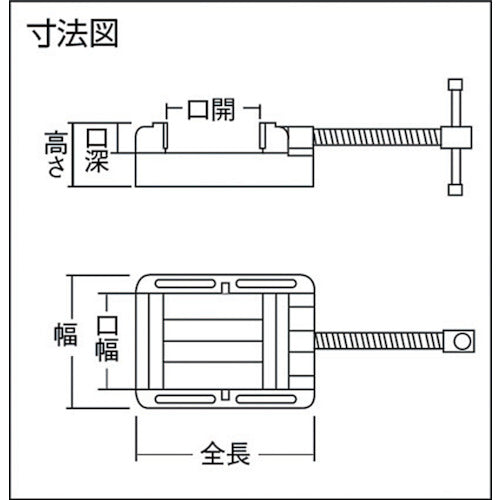

Catalog number: FVL-75 Features: ●Lightweight economy class drill press vise. Specifications: ●Total length (mm): 150 ●Width (mm): 135 ●Height (mm): 45 ●Jaw width (mm): 80 ●Jaw opening (mm): 77 ●Jaw depth (mm): 20 ●Mounting hole dimensions (mm): 10 ●Clamping pressure (kN): 8 ●Type: Drill press vise ●Mounting dimensions (mm): 110 Material/Finish: ●Body: Cast iron ●Shaft, handle, and jaws: Steel Caution: ●The flat surface of the bottom surface is not precision finished. ●Do not use for purposes other than drilling holes with a drill press. Overloading the body fixing jaws may cause damage. ●Due to the draft angle of the cast product, there may be a tolerance of about 3 mm. When machining the mounting holes, place the body on a workbench and check the position and dimensions.
