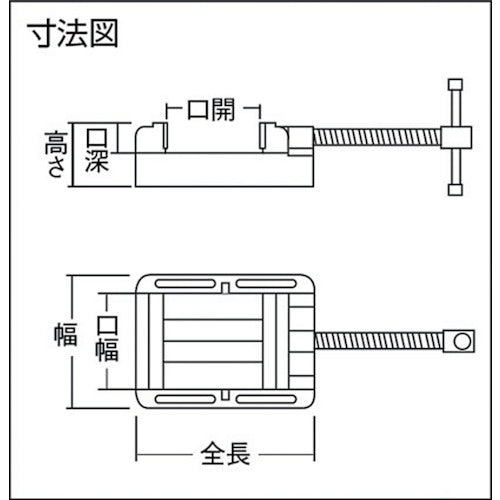

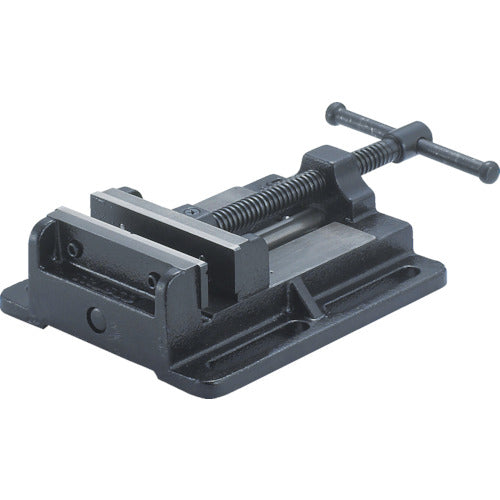

Catalogue number: FV-100 Features: ● Made of cast iron, which is resistant to damage even during heavy-duty work. ● Handle bar that will not fall off. Specifications: ● Total length (mm): 180 ● Jaw width (mm): 100 ● Jaw opening (mm): 100 ● Jaw depth (mm): 32 ● Clamping force (kN): 10 ● Width (mm): 160 ● Height (mm): 63 ● Mounting dimensions (mm): 130 ● Type: Drill press vise ● Clamping pressure (kN): 10.0 Material/Finish: ● Body: Cast iron ● Jaw: Steel Caution: ● The flat surface of the bottom surface is not precision finished. ● Do not use for any purpose other than drilling holes with a drill press. There is a risk of damage due to overloading the body fixing jaw part.
