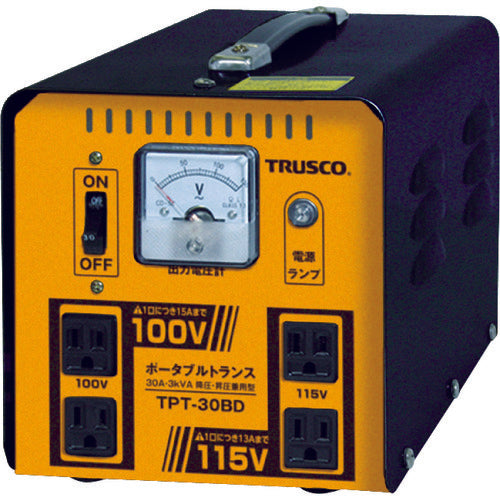

TRUSCO Portable Transformer 30A 3kVA Step-down/Step-up Compatible Type TPT-30BD 1 Unit
TRUSCO Portable Transformer 30A 3kVA Step-down/Step-up Compatible Type TPT-30BD 1 Unit
Regular price
¥30,848
Regular price
Sale price
¥30,848
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: TPT-30BD Features: ●A transformer that can be carried to the site and can be used for both step-up and step-down in one unit. ●Ideal for solving power shortages of electrical appliances. ●Ideal for voltage drop countermeasures. Uses: ●When there is only 200V at the site and you want to use 100V power tools. ●To solve the power shortage of tools caused by voltage drop phenomenon when using with 100V power source. Specifications: ●Capacity (kVA): 3 ●Current (A): 30 ●Input/Output (V): 100, 200/100, 115 ●Protection function: Safety breaker 30A ●Primary wire specifications: 3.5mm [square] x 2m ●Indoor type ●Continuous rating: 30A ●Input cable (3 cores): 2m ●Input plug: Three-phase 200V grounded 3P 20A Caution: ●To prevent electric shock, turn off the power breaker or unplug the plug from the power source when switching the voltage.
