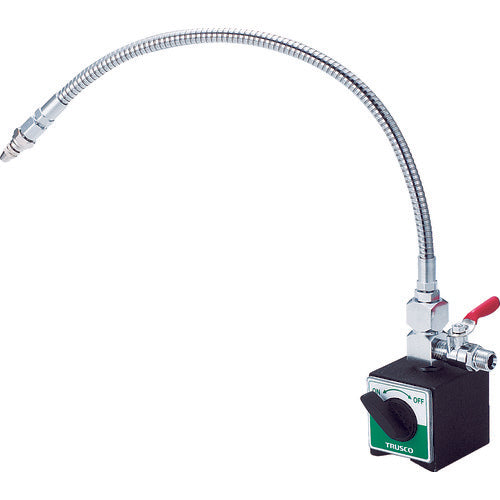

TRUSCO Magnetic base coolant for 1 axis Nozzle 400mm TMBC-1-R400 1 S

Catalog number: TMBC-1-R400 Features: ●The powerful 600N magnet is very convenient for coolant piping at metal processing sites. ●With a flexible nozzle, it can be used with liquids and gases. ●The flow rate can be adjusted by turning the nozzle tip. Applications: ●For cooling, drying, cleaning, etc. in metal processing. Specifications: ●Suction force (N): 600 ●Number of nozzles: 1 ●Compatible fluids: air, cutting oil ●Nozzle diameter (mm): 2 ●Valve: G1/4 ●Hole diameter (mm): φ2 ●Mounting port: G1/4 with ball cock ●Nozzle type: Round spray (with flow rate adjustment nozzle) ●Nozzle length (mm): 400 ●Maximum liquid pressure (kg/cm2): 1 ●Air intake port: G1/4 ●Nozzle mounting port: G1/4 Caution: ●Not suitable for use with water as there is a risk of rust. ●When using with liquids, it is recommended to use sealing tape to prevent leakage.
