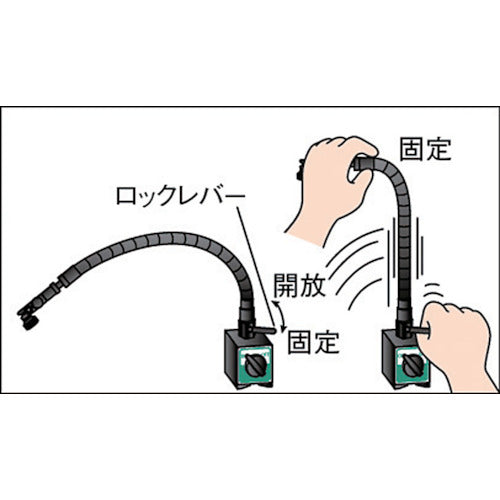

Catalog number: TMF-80N Features: ●Flexible shaft type that can be bent freely and fixed with one touch of the handle. Applications: ●Can be used as a holder for measuring instruments. Specifications: ●Adhesive force (N): 800 ●Magnet width (mm): 50 ●Magnet depth (mm): 60 ●Magnet height (mm): 55 ●Main column mounting screw: M8 x P1.25 ●Main column: φ16 x 340mm ●Main column mounting screw: M8 x P1.25 ●Measuring instrument mounting: 6mm and 8mm holes, with dovetail groove ●Magnet base only: TMH80A ●Fine adjustment knob: TMG-VK Set contents/accessories: ●Collet for shaft diameter 6mm attached to gauge shaft through hole
