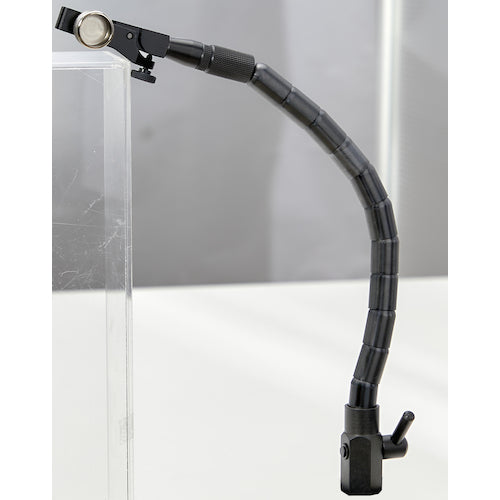

Catalog number: TMF-80NA Features: ● Flexible shaft type that can be bent freely and fixed with one touch of the handle. Applications: ● Can be used as a holder for measuring instruments. Specifications: ● Adhesive force (N): 800 ● Magnet width (mm): 50 ● Magnet depth (mm): 60 ● Magnet height (mm): 55 ● Main column mounting screw: M8 x P1.25 ● Main column: φ16 x 347mm ● Measuring instrument mounting: 6mm and 8mm holes, with dovetail groove ● Magnet base only: TMH80A Set contents/accessories: ● Collet for shaft diameter 6mm attached to gauge shaft through hole
