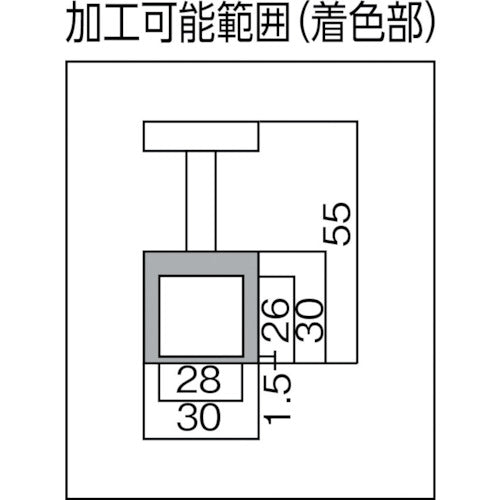

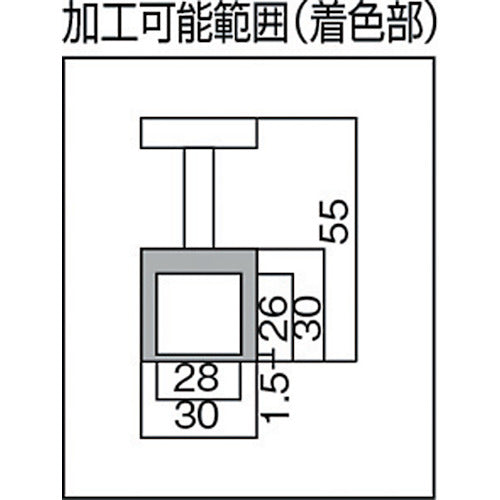

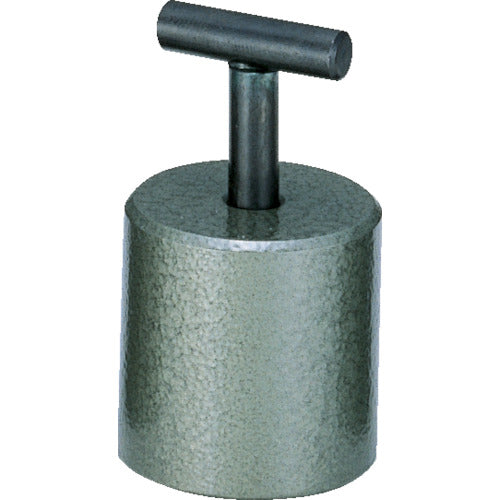

Catalogue number: NH-03R Features: ● Uses an Alnico magnet, so it is resistant to temperature changes. Applications: ● For fixing rulers, etc. ● For embedding in jigs and tools, and for positioning. Specifications: ● Adhesive force (N): 200 ● Outer diameter (mm): 30 ● Height (mm): 30 ● Magnet diameter (mm): 28 ● Magnet height (mm): 26 ● Mounting screw: M6 x 1 ● Surface magnetic flux density (T): 0.13 ● Maximum operating temperature: 200°C Materials/Finish: ● Magnet: Alnico magnet ● Body: General structural rolled steel ● Handle: General steel for polished steel bars
