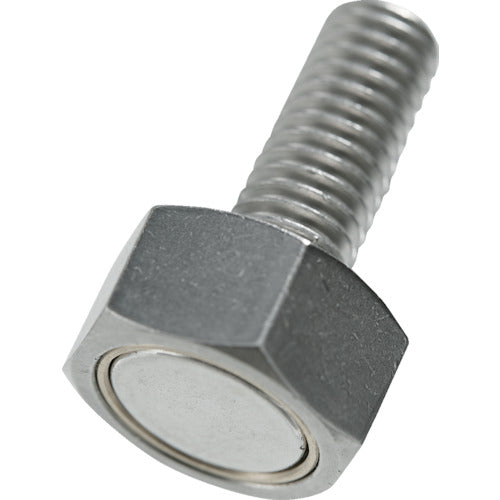

TRUSCO Magnetic Hexagonal Bolt Hardened Type M5XL10 THXBY5-10 1 pc

Catalogue number: THXBY5-10 Features: ● A magnet with strong adhesive power and stable magnetic force. ● Hardening of the head improves wear resistance. Applications: ● For attaching and detaching jigs, etc. Specifications: ● Adhesive power (N): 16.7 ● Screw diameter: M5 ● Surface magnetic flux density (T): 0.36T or more ● Hexagonal face (mm): 10 ● Hexagonal part height (mm): 7 ● Screw diameter (mm): M5 ● Screw length (mm): 10 Material/Finish: ● Body: Carbon steel for mechanical construction (S45C) ● Magnet: Neodymium magnet ● Surface treatment: Electroless nickel plating ● Ring: Brass (C3604)
